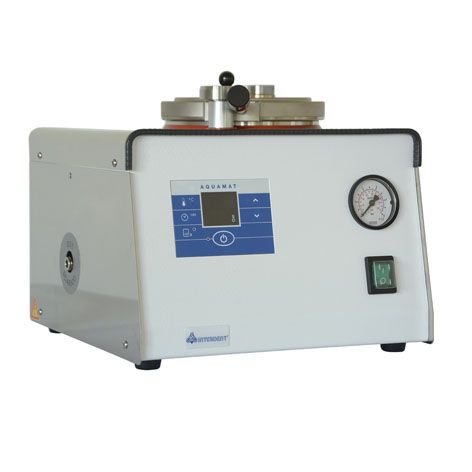

Aquamant Polymerization Unit 230V

Stock Code:
IN689

Description

Aquamat is used for polymerization of acrylic plastics.

The unit is designed for work in dental laboratories. It can work without heating so it can also be used as a pressue chamber.

The polymerization unit has two working temperature zones which means that it can be heated at two stages.

This device has been designed according to the requirements of latest industrial standards.



Technical Data

Electrical supply~230 V, ±10%,  50Hz
Power consumption1220 W
Category of over tensionII
Effective volume of the chamber1,5l
Interior dimensionsΦ140 mm; h=145 mm
Maximum operating pressure6 Bar
Limits set for the working temperature40°C - 125°C
Operating temperature zones2
Limits set for the time1min – 99min
Overall dimensions (WxLxH) in mm300 x 330 x 240
Model Weight9,3 kg
Working temperature5°C - 40°C
Level of environment pollution2



The device is designed for usage in normal dental laboratories up to 2000m altitude above sea level.

The maximum relative humidity of the air must be 80% for temperatures up to 31°C, decreasing lineally to 50% relative humidity for temperature of 40°C.
