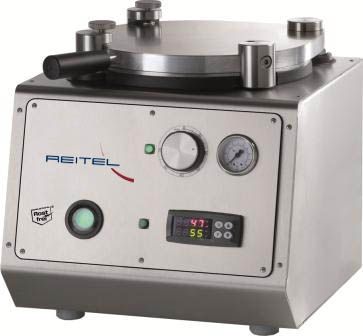

Reitel Polymat Polymerization Unit 100C

Stock Code:
REIT18301

Description

Description:

Pressure and heat polymrisation unit for heat or cold curing products such as occlusal splints, dentures or individual impression trays.

Dental articulators or several flasks in a flask press can be polymerized simultaneously in the POLYMAT polymerization unit. Pressure and time are adjustable by the user. The curing temperature can be adjusted by a variable electronic temperature control. Cleaning of the corrosion resistant stainless steel pressure pot is very easy. The heating process can also be started with the lid open. Water is drained off via a drain tap. The functional and specially designed drain tool is included in delivery

Specification:

  • Various safety tools: pressure gauge, safety valve, pressure switch, temperature limiter and lid safety lock
  • Electronic temperature control
  • Timer up to 60 min.
  • Heating outside the stainless steel tank
  • Status display
  • Fast pressure build-up
  • Waterproof according to IP 54
  • Drain tap



TECHNICAL DATAPOLYMAT
 Line voltage  230V/50–60Hz
Current consumption1.100W
Dimensions (WxHxD) 33/62 x 33 x 38cm
Inner dimensions tank   ø 22 x H 19cm
Weight22kg
Temperature max. 100°C / max. 120°C
Capacity7l
Pressuremax. 6bar

















Optional extra: can be ordered with a 120°C temperature extension (product #28300000)

*** SPECIAL ORDER-IN ITEM ***
