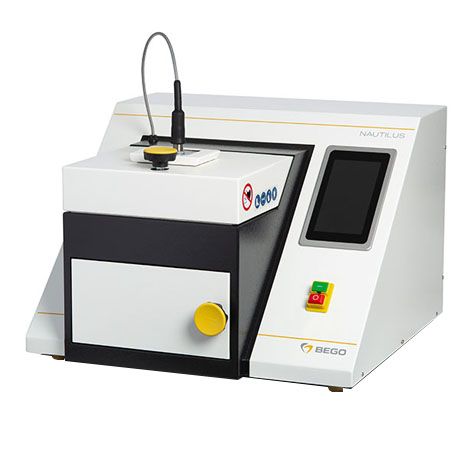

Nautilis CC Plus Vacuum pressure-casting machine with Integrated Cooling
Stock Code:
BG26475EN
Description
The compact, benchtop vacuum pressure-casting machine with integrated power cooling, induction heating and automated casting process.
Nautilus® CC is equally suitable for both non-precious and precious metal alloys, as well as partial denture casting. The integrated fully automatic temperature measuring system uses multi-channel temperature measurement to determine the exact temperature of the melt and fully automatically triggers the casting process.
- Network connection via LAN or WLAN enables access to the integrated casting log archives (up to 1,000 casting logs)
- The connection via the service portal* my.Bego.com enables direct remote diagnosis of the device
- Casting point recognition ensures that the cast objects are filled at the temperature recommended by the alloy manufacturer
- Large 7“ touch display with intuitive menu navigation for convenient and easy operation
- High-performance induction heating guarantees short melting cycles, minimises oxidation and thus facilitates subsequent finishing
- Integrated power cooling provides for over 50 casts in a row, even with high ambient temperatures with moulds made of phosphate-bonded investment materials
- Integrated cooling saves water and helps to protect the environment
- Suitable for all commercially available precious metal and non-precious alloys (excluding titanium)
- Compact dimensions and design give the Nautilus® CC plus a very small footprint
- Eco mode switches off all unnecessary components in idle mode and reduces operating costs
Nautilus vacuum pressure casting concept
The molten mass flows from the hot zone of the crucible directly into the casting mould
| Technical data | |
|---|---|
| Height | 420 mm |
| Height with optical waveguide | 650 mm |
| Width | 600 mm |
| Depth | 670 mm |
| Rated voltage | 230 VAC, 50/60 Hz |
| Power at rated voltage of 230 VAC | 16 A |
| Compressed air connection (Connection thread 1/4‘‘) | at least 5 bar (0.5 [MPa]) |
| Air consumption | approx. 100 l/min |
| Weight | approx. 64 kg |
