Wirobond 280

Wirobond 280

Description

Available in 250 grams or 1000 grams.

Wirobond® 280 is setting new standards in the non-precious metal-to-ceramic alloy segment because, with a Vickers hardness of 280 HV10, it can be finished to a particularly high standard

  • Extremely corrosion resistant thanks to the optimal interaction of the indispensable elements chrome and molybdenum
  • Very good melting and casting properties
  • No prolonged cooling necessary*, even with large spans
  • Secure bonding with ceramics
  • High strength irrespective of the span size, and therefore a wide range of indications
  • Reliable processing in accordance with the proven BEGO system
  • Biocompatibility examined by an independent institute and confirmed with a bio certificate

Product details

  • Density [g/cm3] -  8.6
  • Coefficient of thermal expansion [CTE] 25- 500 °C 10-6  K-1 - 14.3
  • Preheating temperature [°C]  - 900- 1000
  • Casting temperature [°C] -  approx. 1500
  • Melting range [°C] -  1355- 1430
  • Vickers hardness (HV10) -  280

Composition in % by mass

Co 60.2 · Cr 25 · W 6.2 · Mo 4.8 · Ga 2.9 · Si, Mn each < 1 (Nickel-free)

Instruction tips:

  1. Use a clean bur (only for the material)
  2. Oxide Removal: Utilise blasting with a suitable material like Korox 110um to remove oxides from the Wirobond 280 surface.
  3. Cleaning: Thoroughly clean the blasted surface using steam cleaning.
  4. Then opaque.

Downloads



Code Image Description Details
BG50134
Wirobond 280 CO-Chrome 1kg Ceramic
Wirobond 280 CO-Chrome 1kg Ceramic

Details

  • Size:
    1000g
BG50135

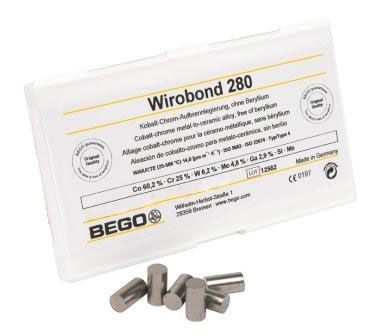

Wirobond 280 CO-Chrome 250g Ceramic
Wirobond 280 CO-Chrome 250g Ceramic

Details

  • Size:
    250g
BG50136
Wirobond 280 CO-Chrome Ceraum *Sample
Wirobond 280 CO-Chrome Ceraum *Sample

Details

  • Amount:
    *For customers who want to try the product and have not purchased the product. One per customer only.
  • Size:
    Sample
