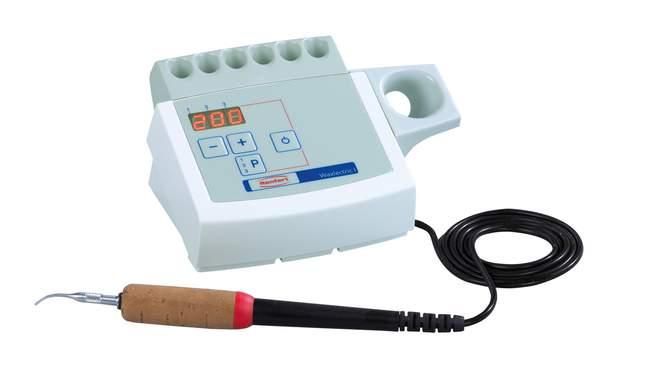

Waxlectric I 230V
Description
Waxing-up is simple, precise and stress-free due to the accurately set, constant and evenly distributed temperature of the instrument tip.
Huge saving in time because separate heating of the instrument and material is no longer required.
Quality, speed and simplicity:
- 20% saving in waxing-up time, as separate heating of the instrument is no longer required.
- 50% saving in waxing up time (wax-up twice as fast) when used with the Waxprofi in prosthetics or the Vario E in crown and bridge work, as separate heating of the waxes is also no longer required.
- No contraction of the pattern, as the wax is not overheated or burned.
- The technician is able to concentrate on the pattern rather than on the materials and instruments.
- Easier waxing-up on the model, as the wax knife is constantly at the optimum working temperature.
Temperature setting
- Comfortable and intuitive operation.
- Exact temperature setting (Celsius or Fahrenheit)
- 3 temperatures can be set and permanently assigned to each channel and are immediately available at the press of a button.
- 3-segment LED display visible in daylight.
- Programmable initial temperature of 50°C- 00°C (122°F- 92°F).
- Direct setting of the maximum or minimum temperature.
- Both channels can be set separately with the Waxlectric II (colour-coded).
Handpiece
- Heat-insulated heating element not integrated in the handle.
- Natural cork instrument handle, gentle to the skin.
- Ergonomic design for comfortable, fatigue-free waxing-up.
- Heat-resistant, anti-twist cable.
- Colour coding facilitates temperature setting.
Housing
- Compact, ergonomic model in a new design
- Angled at 20° for an improved view and easier operation
- Holders for 6 waxing-up tips and the handpiece directly on the housing
- Both holders can be easily detached for cleaning (e.g. with a steam cleaner)
- Hermetically sealed touchpad is easy to clean
Waxing-up tips
- Choice of 12 different waxing-up tips made from a special alloy
- Screw connection makes tips easier and quicker to change without using an instrument
- Heating element is integrated in the tip, ensuring very short reaction times with virtually no temperature fluctuations and no heating of the handl
Simple, accurate temperature setting
The exact temperature setting is quickly and easily entered in Celsius or Fahrenheit.
A 3-segment LED display ensures the temperature is easy to read even in brightly lit surroundings. The temperature setting also remains stored after the unit is switched off so that the technician can continue waxing up later at the correct temperature.
Ergonomic features
The holders supplied for the handpiece and tips are attached directly to the housing.
This is consistent with the ergonomics and compact design of the unit. All components are designed strictly according to ergonomic principles. The unit is very easy to clean because of the hermetically sealed touchpad and detachable holders. The handpiece and cable have been thoroughly tried and tested and have some outstanding features, such as excellent heat insulation, heat resistance, anti-knotting and anti-kink cable, easy handling and colour coding for indicating the relevant temperature.
Waxing-up tips
Construction
The integrated heating element of the waxing-up tip transfers the heat directly to the wax.
There are only slight fluctuations in temperature. The difference in temperature between the heating element and waxing-up tip is absolutely minimal.
Systematic, efficient waxing up of the highest quality
The Waxlectric provides considerable advantages, even when it is used as a separate unit. Used in conjunction with other units and with the specially developed waxes the Waxlectric becomes part of a perfectly integrated syste
Pack contents:
1 Control unit
Integrated holders for the Waxlectric handpiece
1 Handpiece
1 Waxing-up tip (Medium Tip)
1 Mains unit 1 Instructions for use with a list of replacement parts
Weight (with / without mains unit): Approx. 445 g / 235 g
Dimensions Waxlectric 1 (W x H x T): 120 x 60 x 98 mm (4.72 x 2.36 x 3.86 inch)
